Your character keeps moving on its own, even when you’re not touching the stick. Aiming feels off, and simple games turn frustrating fast.
This is stick drift, and it’s more common than you think. Most players assume a broken controller means a full replacement.
That’s not always true. Learning how to calibrate PS5 controller can fix the issue in minutes, often without spending a single dollar.
No technical background needed here. Just a few tools and simple steps anyone can follow.
Here you will learn different calibration methods, when they work best, and what to do if drift still won’t go away.
Does the PS5 Controller Have a Calibration Setting?
The standard PS5 DualSense controller does not have a built-in calibration menu. Sony only added this feature to the more expensive DualSense Edge controller.
If you own a DualSense Edge, you can calibrate your sticks directly from the PS5 settings menu. This option adjusts deadzones and stick curves without any extra tools.
For everyone else using the standard DualSense, there is no official calibration setting on the console itself. So if you’re wondering how to calibrate PS5 controller without this built-in option, other methods can still fix stick drift.
Free tools and simple settings changes can help solve the problem without needing an official console option.
Methods to Fix Stick Drift With PS5 Controller Calibration
Your fix depends on which controller you own and what tools you have ready. These three methods cover every situation.

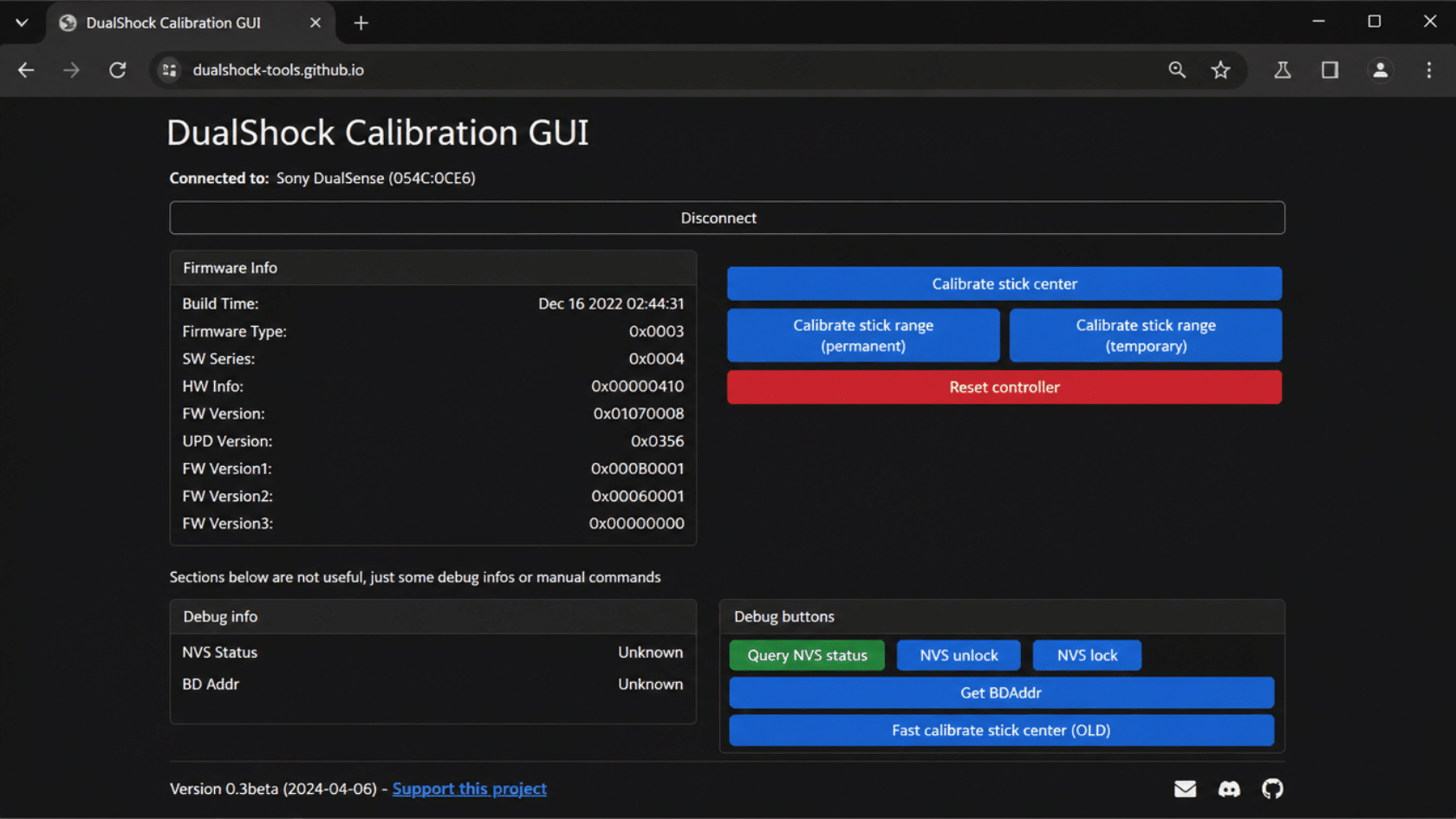

Method 1: Calibrate Using DualShock Calibration GUI
This is the easiest and most reliable way to fix stick drift on a standard PS5 controller. It works through a free browser tool, no extra software needed.
Before starting, make sure you have the following ready:
- A USB-C data cable (not a charge-only cable)
- A Windows PC
- A Chromium-based browser like Chrome or Edge
- Steam and similar background programs are fully closed
Step-by-Step Calibration Process:
Follow these steps for the best results:
- Connect the controller to your PC with the USB-C cable.
- Open the DualShock Calibration GUI in your browser.
- Select “Calibrate Stick Center” and adjust the center using the D-pad or keyboard.
- Select “Calibrate Stick Range” and rotate both sticks fully in a circle.
- Check for smooth movement with no flickering.
- Type SAVE to store the data on the controller.
The calibration saves directly to the controller’s hardware, not the PC. This means the fix stays in place even after you reconnect the controller to your PS5.

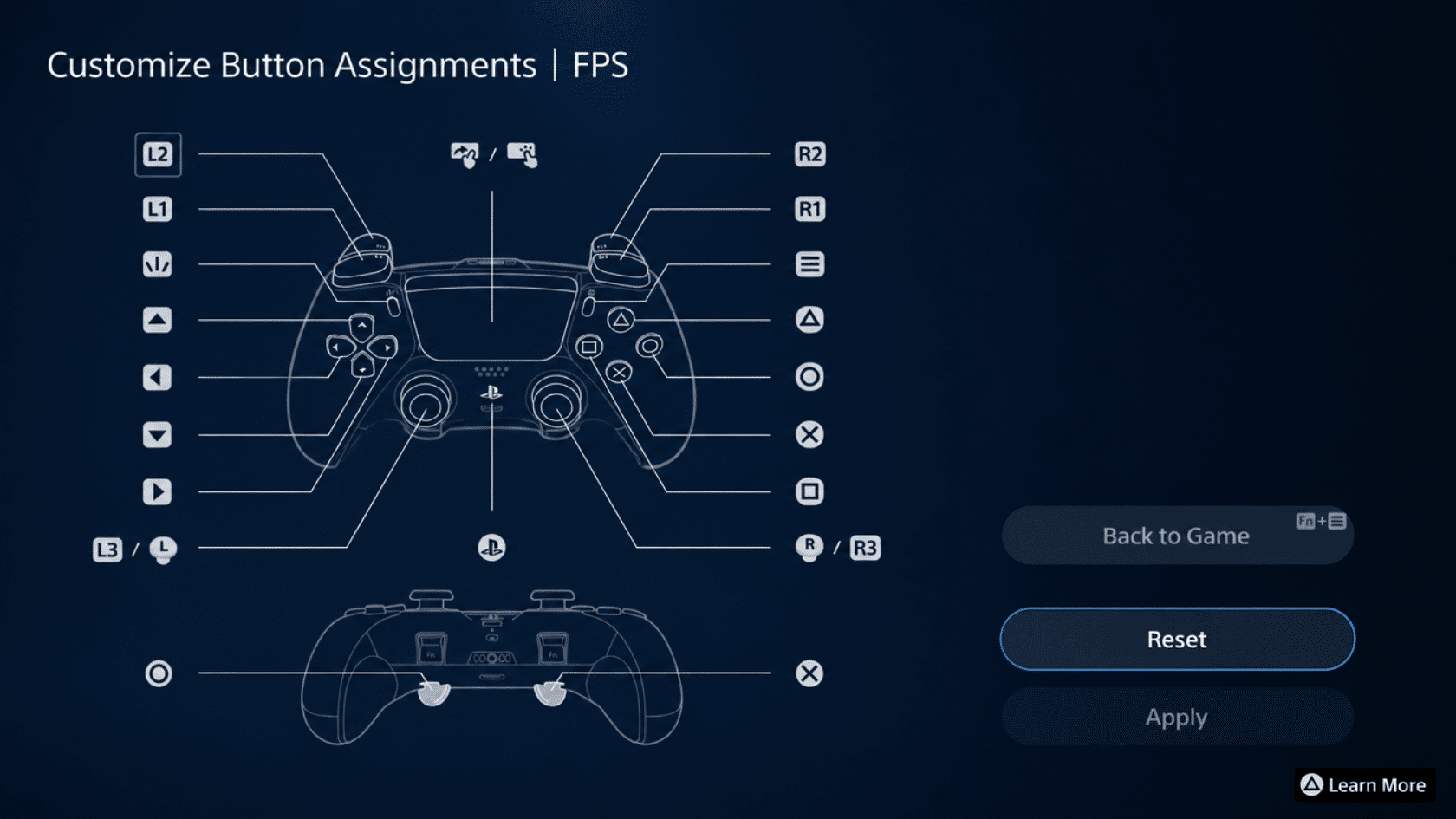

Method 2: Calibrate DualSense Edge
This method only works for the DualSense Edge controller. Standard DualSense owners will need to use Method 1 instead.
Follow these steps to access the settings on your PS5:
- Go to Settings on your PS5 home screen.
- Select Accessories.
- Choose Controller (DualSense Edge).
- Open Stick Deadzones and Curve Adjustments.
Once you’re in this menu, you can adjust three key settings:
- Deadzones: Set how far a stick needs to move before the console registers input.
- Curves: Adjust how sensitivity ramps up as you push the stick further.
- Stick sensitivity: Control how responsive each stick feels overall.
This built-in option makes it simple for Edge owners to correct minor drift issues right from the console, no extra tools or cables required.

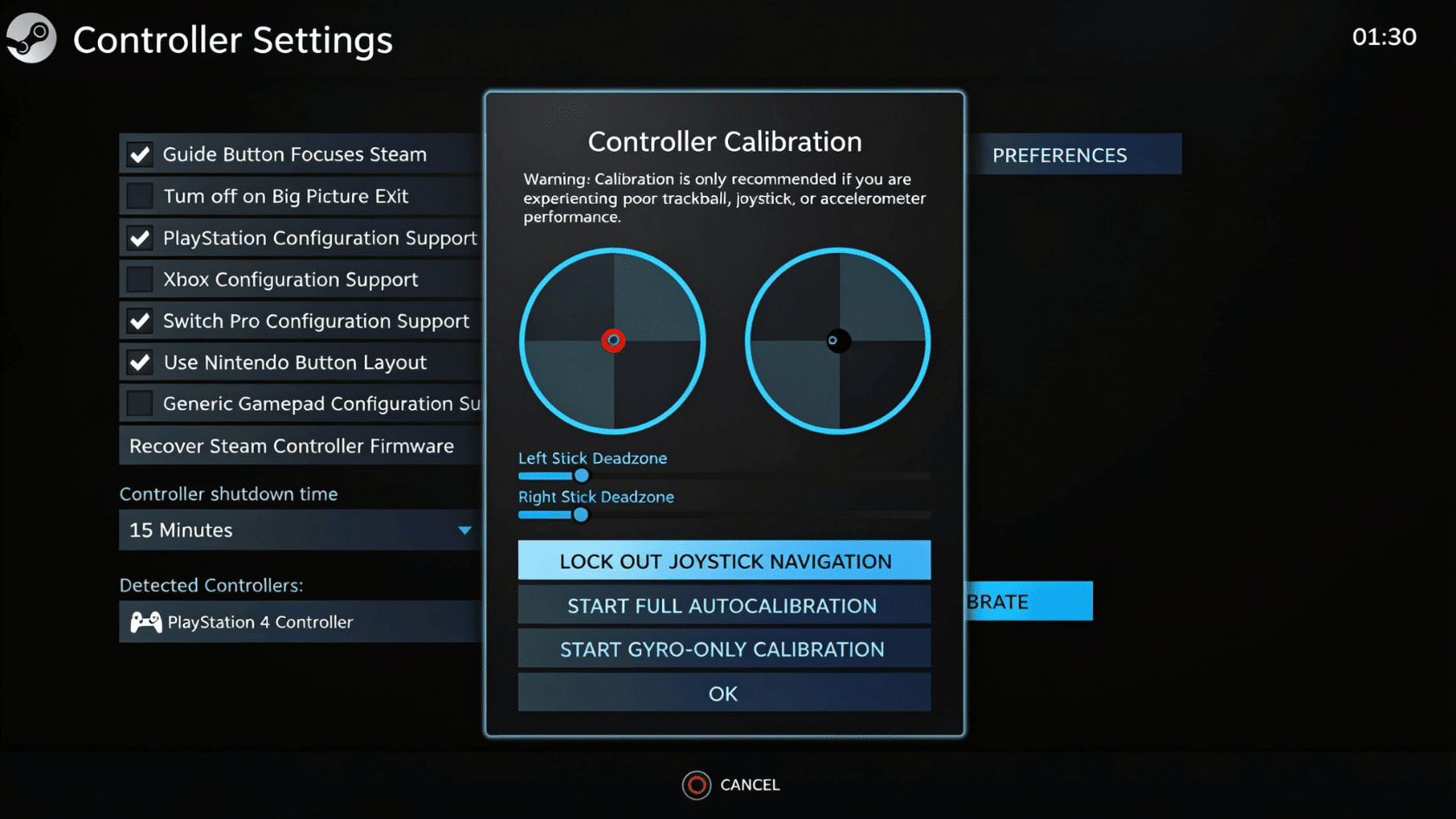

Method 3: Adjust Deadzones in Individual Games
Many games, especially shooters, include a deadzone slider in their settings. This offers a quick fix without needing any external tools or cables.
Raising the deadzone slightly can hide minor stick drift by ignoring small, unwanted movements. It’s a handy temporary fix while you plan a permanent one.
Check the game’s controls or gameplay menu to find this option. Not every game includes it, so this depends on the title you’re playing.
This trick only hides the symptom for a while. It won’t fix the actual hardware problem causing the drift.
Alternative Calibration Tools
If the DualShock Calibration GUI does not work for your setup, other tools can help you figure out how to calibrate PS5 controller using different software.
GuliKit Test & Cal is a USB-wired tool that lets you test stick movement and run calibration checks on your controller.
Battle Beaver Customs PS Recalibration tool is another option worth trying, often used by controller repair shops and serious gamers.
Most of these tools need a wired USB connection to work properly. Some may also require your controller to have updated firmware installed first.
If one tool does not detect your controller correctly, try a different cable or check for firmware updates before giving up.
What to Do If Calibration Doesn’t Fix Stick Drift?
Sometimes calibration will not solve the problem. This usually means the stick’s potentiometer, a small internal part, has worn down over time from regular use.
Once this part wears out, no amount of software calibration can fix the drift permanently. At this point, you need a hardware fix instead of a digital one.
You have a few options to consider:
- Replace the thumbstick module yourself if you’re comfortable with small repairs.
- Solder repair by a professional if the issue involves internal wiring or connections.
- Contact PlayStation Support to check if your controller qualifies for a warranty repair.
Choosing between these depends on your comfort level with hardware and whether the controller is still under warranty.
How to Test If Your PS5 Controller Needs Calibration?
Stick drift can show up in small ways before it becomes a bigger problem. A few simple checks can help confirm if your controller needs a fix.
- Character or cursor moves on its own without touching the stick.
- Movement feels jumpy or erratic during regular gameplay.
- Stick needs a big push before input registers at all.
- Connection status can be checked under Settings, then Accessories, then Controllers.
- Test on a different game to rule out a game-specific issue.
Running through these checks first can save time. If any of these signs show up, calibration is worth trying before considering a repair.
Wrapping Up
Fixing stick drift doesn’t have to be complicated. Now you know how to calibrate PS5 controller using free tools, console settings, or quick in-game fixes.
Pick the method that fits your situation, whether it’s the calibration GUI or a quick deadzone tweak. If drift continues after that, a repair may be next.
A quick calibration check every few months can help catch problems early before they get worse.
Have questions or a fix that worked for you? Drop a comment below and let us know.
Frequently Asked Questions
Will Calibrating My Controller Delete My Saved Settings or Button Mappings?
No, calibration only affects stick center and range data. Your button mappings, saved profiles, and other controller settings stay exactly as they were.
How Often Should I Calibrate My Ps5 Controller?
There’s no fixed schedule. Calibrate whenever you notice drift or erratic movement, or after long periods of heavy use, roughly every few months for regular players.
Does Calibrating Void My Controller’s Warranty?
No. Software calibration through tools like the DualShock Calibration GUI adjusts stick data only, without opening the controller, so it won’t void your PS5 warranty in any way.
